EMS 5 cm² Ultrasound applicator Intelect Mobile 2

EMS 5 cm² Ultrasound applicator Intelect Mobile 2

Category:

PRODUCT DETAILS

New Ultrasound Applicator

  • Ergonomic design fit for the hand
  • Improved coupling detection and monitoring

TECHNICAL SPECS



Ultrasound applicator Frequency

 1cm² 2cm² 5cm²
 1MHz  3MHz  1MHz  3MHz  1MHz  3MHz
 Effective Radiating Area ERA INTL (cm²)  1  0.9  1.5  1  2.5  2.7
 Max Output power in Continuous mode  2W  1.8W  3W  2W  5W  5.4W
 Max Output power in Pulsed mode  3W  2.7W(*)  4.5W  3W  7.5W  8.1W
 Max Amplitude in Continuous mode  2W/cm²  2W/cm²  2W/cm²  2W/cm²  2W/cm²  2W/cm²
 Max Amplitude in Pulsed mode  3W/cm²  3W/cm²  3W/cm²  3W/cm²  3W/cm²  3W/cm²

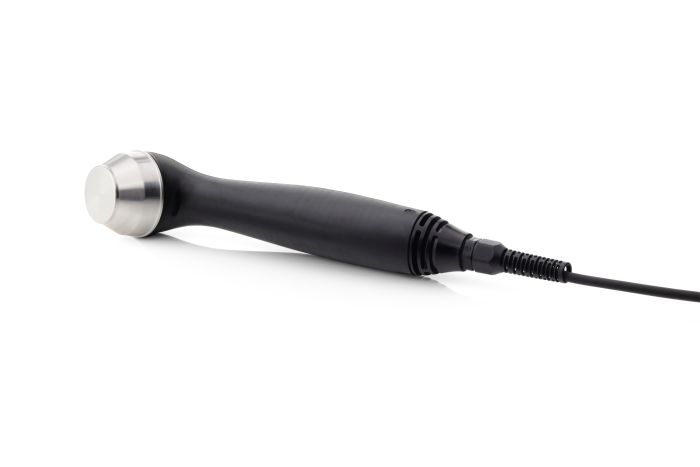

New Ultrasound Applicator Ergonomic design fit for the hand  Improved coupling detection and monitoring
